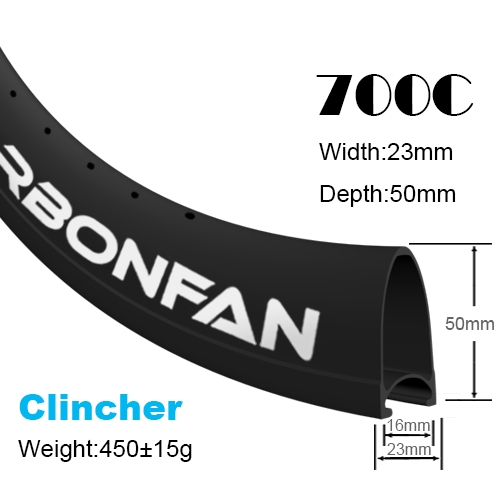

Depth:50mm Width:23mm Clincher 700C carbon road rims Classic rims

Depth:50mm Width:23mm Clincher 700C carbon road rims Classic rims

Welcome to Carbonfan wheels store. Here is some tips for shopping.

Carbon wheel weight

Depth:50mm Width:23mm Clincher 700C carbon road rims Classic rims

SKU NC-rim-Clincher-50-23-16

Be the first to review this product Ask Question

Rim weight: 420.00 g

$138.00

Availability: Available

Rim or Wheels *

Rim
Wheels +$250.00

A pair? *

Yes, A pair
Only front
Only rear

Brake system *

Non-Disc (with basalt braking surface)
Disc, Cyclo-Cross (without braking surface)

Hub model *

DT Swiss 180 RATCHET EXP ( Centerlock Straightpull ) +$250.00
DT Swiss 350
DT Swiss 240 RATCHET EXP +$95.00
Hope RS4 +$42.00

Hub upgrading *

None
Upgrade to DT 36T ratchet +$80.00
Upgrade to DT 54T ratchet +$80.00

Axle size (Front / Rear) *

Freehub body *

Sram XD +$30.00
Shimano Micro Spline (12 speed) +$49.00
Shimano Road 11 Speed
Sram XDR 12S +$69.00

Rotor *

6-Bolt
Centerlock
V-Brake (Non-Disc)

Spoke head *

J-bend
Straight pull

Spoke *

Pillar aero x-tba 1420
Sapim CX-ray +$60.00

Spoke of replacement *

None
Pillar aero x-tba 1420 +$4.00
Sapim CX-ray +$6.00

Nipple *

Aluminum black
Aluminum red
Brass black

Nipple drilling *

External Nipple 4.5mm
External Nipple 4.5mm & UST ( no nipple hole on rim bed ) +$10.00
Internal Nipple 2.3mm

Finish *

Glossy
Matte
Paintless +$20.00

Weave *

Valve stem *

None
With Valve Stem +$15.00

Tubeless Tape *

None
With Tubeless Tape +$5.00

Shipper *

* Required Fields

Qty:

If you wanna make your front wheel and rear wheel different, you can decrease this QTY to 1 and select another wheel add to shopping cart

-OR- -OR-

Email to a Friend

Warranty policy

1 year quality guarantee, More details

: Product Description
: Product Questions
: Ratings & Reviews
: Shipping

Product Description

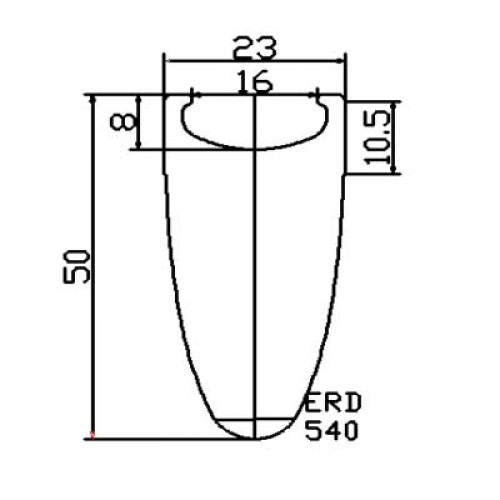

NC series of Classic carbon rims, 23mm outwidth, 16mm innerwidth, including (38mm, 50mm, 60mm depth), gives you a double experience of lightness and speed.

Size	Outer width	Inner width	Depth	ERD	Weight(g)+/-15	Model
700c	26mm	16mm	50mm	540	450	Clincher

Rim Material:	full carbon Toray T700
Spoke Hole Drilling:	+/-6 deg
Max Weight Limit:	115kg
Max Spoke Tension:	160kgf
Cycling Tyre Pressure:	30psi(recommended)
Rim Warranty:	1 year
Rim Lead Time:	9 days

Product Questions

No questions yet. Be the first to ask the question!

Ratings & Reviews

Be the first to review this product

Shipping Methods

Carbonfan ship out by EMS. If you prefer other ways of shipping (like DHL/TNT), please contact us. more details at FREE SHIPPING
