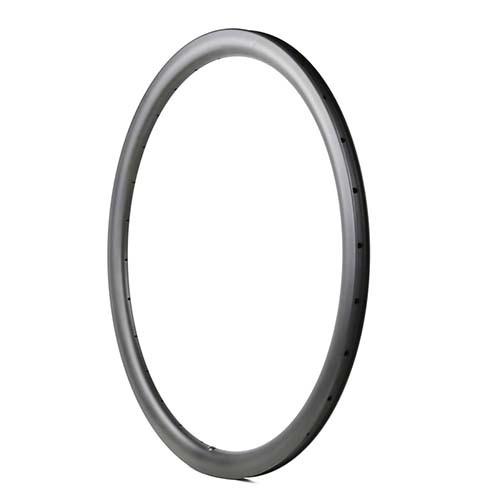

The new disc CX bike rims are with 25mm width, offering greater stability with wider tyres and creating a lightweight strong wheels for CX bike.

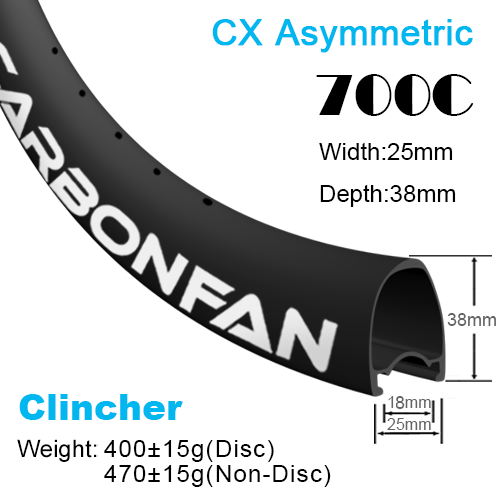

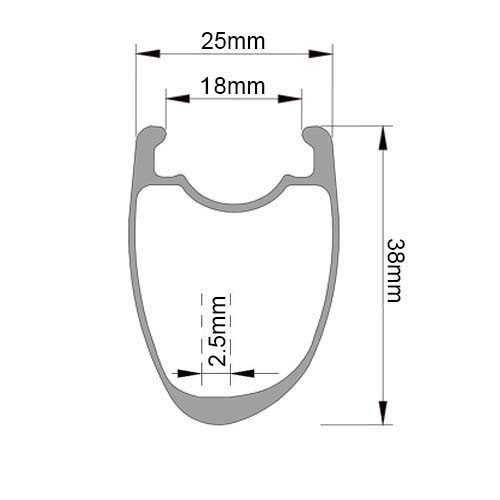

Asymmetric CX road bike carbon rims,38mm depth, 25mm width,2.5mm offset,make stiffer and stronger wheels,run tubeless system well with bead lock design,wider rims can support 25C-32c tire, Non brake surface,used for disc brake.
|Size||Outer width||Inner width||Depth||ERD||Weight(g)+/-15||Model||Brake system|
|Rim Material:||full carbon Toray T700|
|Spoke Hole Drilling:||+/-6 deg|
|Max Weight Limit:||150kg|
|Max Spoke Tension:||130kgf|
|Max Tire Pressure:||125psi|
|Assembly Hole Dia:||Ø 7.5mm|
|Spokes Hole Dia:||Ø 4.5mm|
|Valve Hole Dia:||Ø 6.5mm (presta)|
|Rim Warranty:||1 year|
|Rim Lead Time:||10 days|
Lead time within 15 business days if out of stock.
