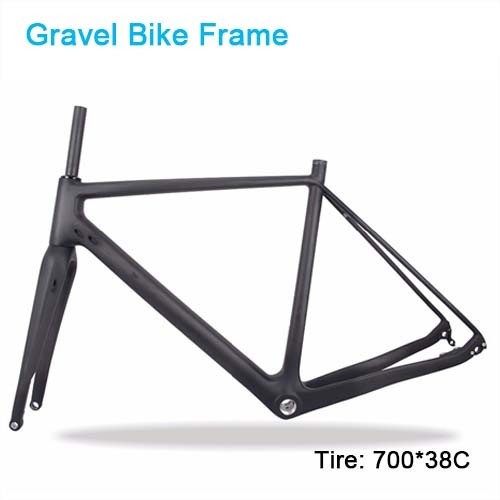

Carbon Bike Frame Thru Axle 142mm Available 700*38C ATEL Carbon Bike Frame, Gravel Di2 Carbon Cyclocross Frame Disc

1,384.00 g

Availability: Available

* Required Fields

If you wanna make your front wheel and rear wheel different, you can decrease this QTY to 1 and select another wheel add to shopping cart

  • Product Description

    With Carbonfan, you can build the bike of your dreams!.This 29er Carbon Frame is finished in UD matte. The available frame sizes are 15.5/17.5/19/21
    inch seat tube length.

    A 29er bike supertuned from carbonfan for racers and recreational riders. We took our time to develop and test our 29er with Pro athletes to ensure we
    delivered the best package of power saving stiffness and weight. Our designers exploited the capability of the monocoque construction to get the very
    best shaped tubes for the ultimate performance and weight. A combination of UD and high modulus carbon means no local stress raisers at any joint,
    resulting in a tough, resilient and durable frame and an exciting riding experience.

    Size: XS/49cm; S/52cm, M/54cm, L/56cm, XL/58cm

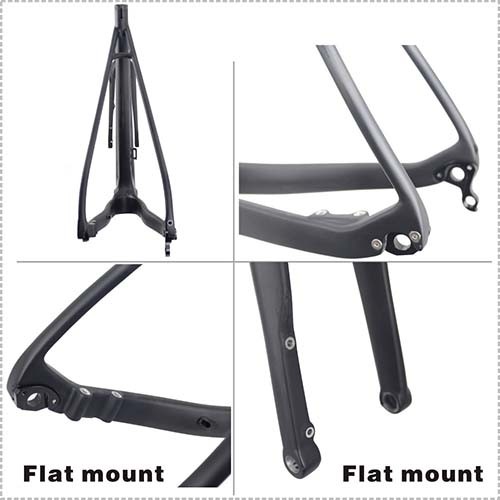

    Brake type: Flat mount
    Weight: Frame 1050+/-40g, Fork 399+/-15g
    Weave: UD
    Material: High Modulus Toray Carbon Fiber
    Brake Type: Disc Brake; (front and rear 160mm rotor)

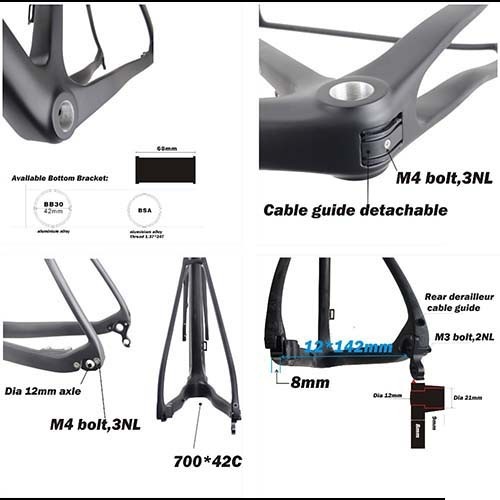

    Frame rear spacer: 12*142mm axle or 135mm QR

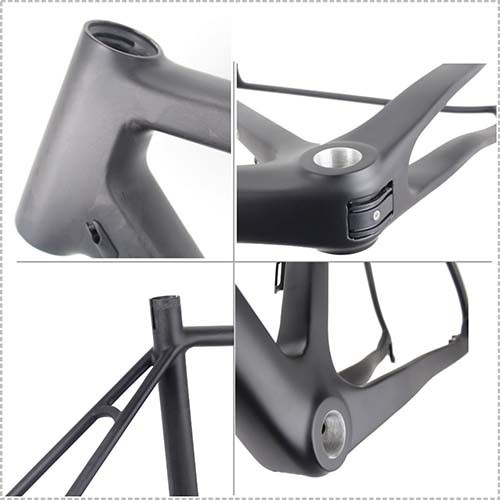

    :Head tube: Taper 1-1/8” to 1-1/2”
    Seat Tube: For diameter 27.2mm seat post
    Chain Stay: 425mm
    Cable: Internal cable
    Groupset: Di2 and Machine compatible
    Bottom Bracket 68mm BSA/BB30
    Tire size: 700X38C
    Fork spacer: 15*100mm thru axle
    Fork Rake: 45mm
    Warranty: 2 years
    Rim Lead Time: 12-21 days
