Product Description
With Carbonfan, you can build the bike of your dreams!.This 29er Carbon Frame is finished in UD matte. The available frame sizes are 15.5/17.5/19/21
inch seat tube length.
A 29er bike supertuned from carbonfan for racers and recreational riders. We took our time to develop and test our 29er with Pro athletes to ensure we
delivered the best package of power saving stiffness and weight. Our designers exploited the capability of the monocoque construction to get the very
best shaped tubes for the ultimate performance and weight. A combination of UD and high modulus carbon means no local stress raisers at any joint,
resulting in a tough, resilient and durable frame and an exciting riding experience.
| Size: | XS/49cm; S/52cm, M/54cm, L/56cm, XL/58cm |

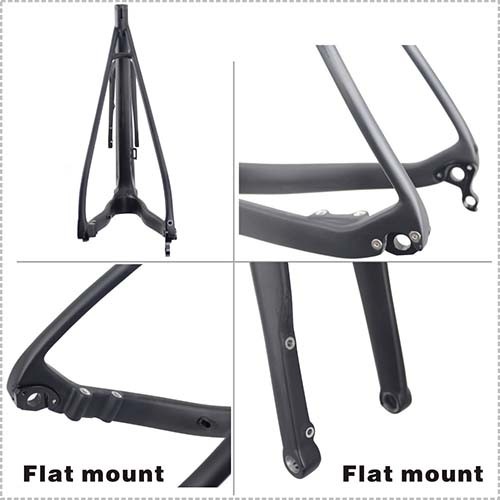

| Brake type: | Flat mount |
| Weight: | Frame 985+/-15g (52cm), Fork 399+/-15g |
| Weave: | UD |
| Material: | High Modulus Toray Carbon Fiber |
| Brake Type: | Disc Brake; (front and rear 160mm rotor) |

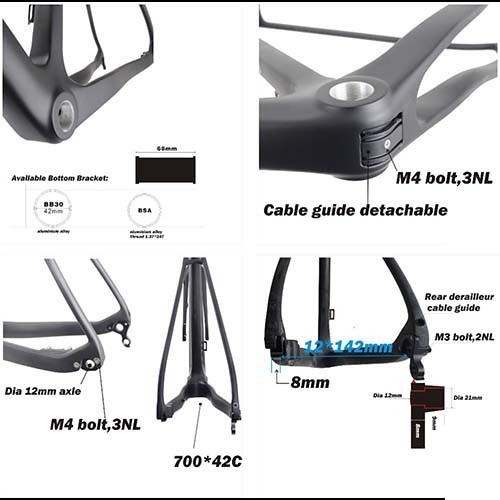

| Frame rear spacer: | 12*142mm axle or 135mm QR |
| :Head tube: | Taper 1-1/8” to 1-1/2” |
| Seat Tube: | For diameter 27.2mm seat post |
| Chain Stay: | 425mm |
| Cable: | Internal cable |
| Groupset: | Di2 and Machine compatible |
| Bottom Bracket | 68mm BSA/BB30 |
| Tire size: | 700X40C |
| Fork spacer: | 15*100mm thru axle |
| Fork Rake: | 45mm |
| Warranty: | 2 years |
| Rim Lead Time: | 12-21 days |
GR029
