Product Description
The design for wheels in HM series is classic symmetry, which is very different from XY series. It is still the most commonly used design in the market. If you observe its cross-section carefully, you will find that it is more close to the traditional design for the aluminum wheels. If it is your first time to use carbon fibre wheels, HM will be your best choice. Because they will give you similar felling when you are using aluminum wheels. HM series targets players who use carbon fibre wheels the first time.
The design for HM mountain wheelset emphasizes universality. Its design is very classic and highly commended in the early markets. In order to catch up with the latest trend, recently we start to use the newest asymmetrical designs.

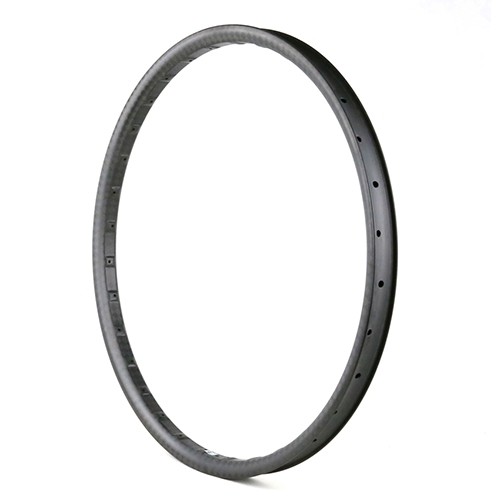

Hookless carbon rims designed for aggressive mountain bikers,light,stiff and strong enough.Bead lock design allows rim run tubeless system pecfectly and safely.Continuous carbon fiber over hookless sidewall provides great impact strength and resistance.

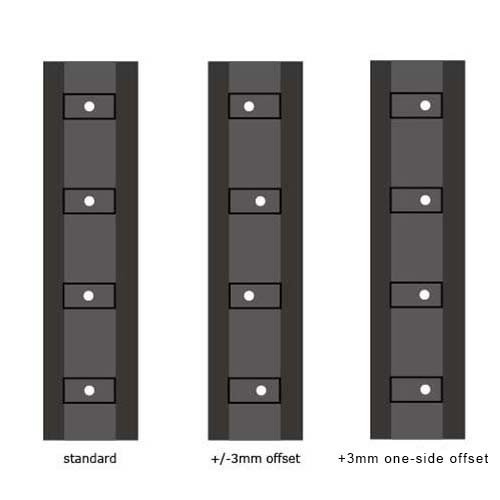

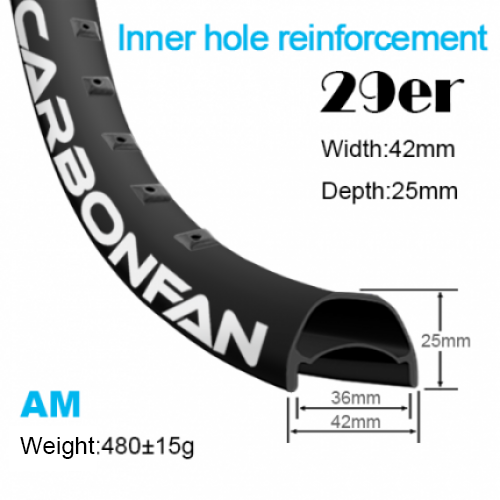

The rims used protected by inner hole reinforcement. It can be drilled into 32 +/-3mm offset.

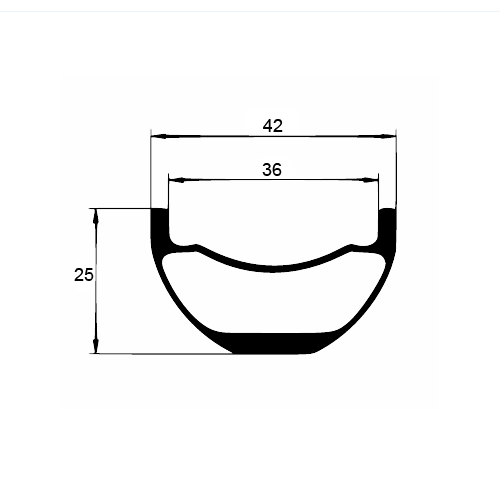

| Size | Outer width | Inner width | Depth | ERD | Performance | Weight(g)+/-15 |
| 29er | 42mm | 36mm | 25mm | 595 | XC | 480 |
| Rim Material: | full carbon Toray T700 |
| Spoke Hole Drilling: | +/-6 deg |
| Max Weight Limit: | 125kg |
| Max Spoke Tension: | 150kgf |
| Cycling Tyre Pressure: | 35psi(recommended) |
| Rim Warranty: | 1 year |
| Rim Lead Time: | 20 days |
