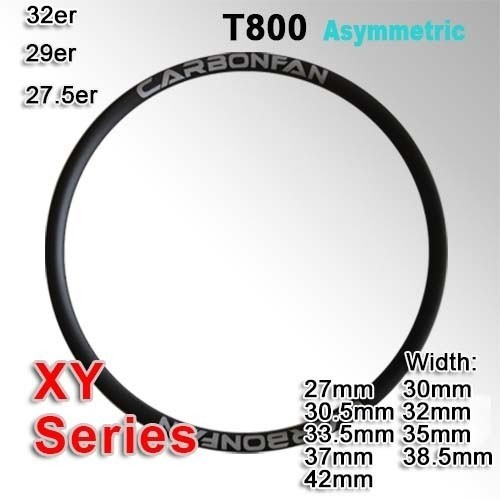

T800 Tubeless Asymmetric Carbon Mountain Bike Rim XY series ( Width: 27mm, 30mm, 30.5mm, 32mm, 33.5mm, 35mm, 37mm, 38.5mm, 40mm, 42mm )
  1. Display Gallery Item 1

Welcome to Carbonfan wheels store. Here is some tips for shopping.

T800 Tubeless Asymmetric Carbon Mountain Bike Rim XY series ( Width: 27mm, 30mm, 30.5mm, 32mm, 33.5mm, 35mm, 37mm, 38.5mm, 40mm, 42mm )

XY-T800-series-rim
Be the first to review this product Ask Question
280.00 g
$202.00

Availability: Available

* Required Fields

To buy, select Size and Outer width and Depth

Choose from options to the left

If you wanna make your front wheel and rear wheel different, you can decrease this QTY to 1 and select another wheel add to shopping cart

    • Warranty policy

    1 year quality guarantee, More details

    Product Description

    Product Questions

    Ratings & Reviews

    Shipping

    Product Description

    The Skyweight is a new series of rims from Carbonfan. Targeted specifically towards racers who seek every possible edge on the race course. Our goal
    was the produce the lightest possible rim without sacrificing performance. Through revisions in each step of the manufacturing process, we were able to
    produce a strong, light and competitive rim.

    XY series T800 products, with various specifications, asymmetric rim, 27.5er, 29er, provide selection.
    T700 80% + T800 20% .

    Standard: Constructed with premium Toray T700 carbon fiber. The good strength to weight ratio with no expense spared.
    Skyweight: Hybrid construction of Toray T800 and T700 was used to reduce wall thickness in key areas while enhancing the overall rim stiffness. These
    rims are available with the UD material only due to the strict standards required to produce the Flyweight model. We used a lower FAW (fiber areal
    weight) and a thinner prepreg to achieve a more adjustable layup schedule design which reduces the stress between the layers of carbon fiber.

    Hookless:Carbon fiber flows continuously over the bead area to provide the best impact resistance and a significant strength increase compared to a
    clincher rim.

    Tubeless:While the rims are optimized for a tubeless setup with the addition of tubeless tape, they also work with tubes.

    Size Outer width  Inner width Depth ERD Performance  Weight(g)+/-15 Tire width Max pressure
    29er 27mm 22mm 23mm 593 XC 280 1.9-2.3 40psi
    29er 30mm 24mm 24mm 591 XC 320 2.1-2.5 40psi
    27.5er 30mm 24mm 24mm 553 XC 300 2.1-2.5 40psi
    29er 30.5mm 23.5mm 19.5mm 600 XC 300 2.1-2.5 40psi
    29er 33mm 27mm 20mm 599 SL/XC 265/285 2.1-2.5 40psi
    29er 36mm 30mm 20mm 599 SL/XC 285/305 2.1-2.5 40psi
    29er 39mm 33mm 20mm 599 SL/XC 305/325 2.1-2.5 40psi
    27.5er 33.5mm 25.5mm 25mm 551 XC 320 2.1-2.6 40psi
    29er 33.5mm 25.5mm 25mm 589 XC 340 2.1-2.6 40psi
    29er 35mm 29mm 25mm 589 XC/AM 360 2.2-2.6 40psi
    27.5er 35mm 29mm 25mm 551 AM/DH 340 2.2-2.6 40psi
    29er 38.5mm 30.5mm 28mm 584 XC/AM 360 2.2-2.6 40psi
    27.5er 38.5mm 30mm 28mm 551 XC/AM 350 2.2-2.6 40psi
    29er 30mm 24mm 35mm 569 AM Gravel 370 2.1-2.5 85psi
    27.5er 30mm 24mm 35mm 531 AM Gravel 350 2.1-2.5 85psi
    29er 32mm 26mm 18.5mm 602 XC 320 2.1-2.5 40psi
    29er 37mm 30mm 18.5mm 602 XC 360 2.1-2.5 40psi
    29er 42mm 35mm 18.5mm 602 XC 390 2.1-2.5 40psi

    Rim Material:  20% Toray T800 and 80% Toray T700
    Spoke Hole Drilling: +/-6 deg
    Asymmetric Offset: 2.6mm
    Max Weight Limit: 100KG
    Max Spoke Tension: 140kgf
    Max pressure: 40psi(recommended)
    Rim Lead Time: 9-15 working days
    Applicable to model: It only applies to Cross country(XC)
    Diameter of the outer spoke hole: 6.5
    * It only applies to (XC) Asymmetry.
    * Max Rider Weight 100kg.
    * External Holes in 6.5mm of Rim Bed.
