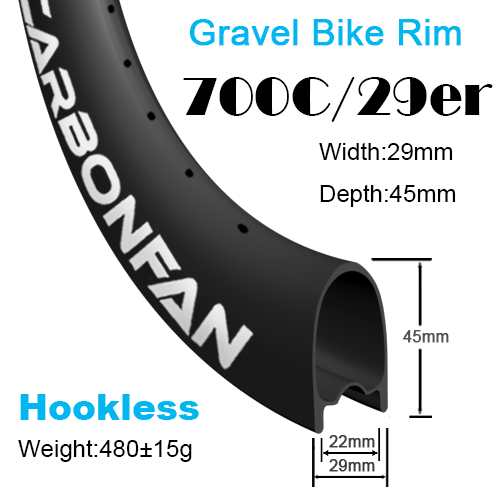

Width:29mm Depth:45mm 29er (700C) CX Gravel Carbon Mountain / Road Bike Rim Tubeless Ready Hookless

Width:29mm Depth:45mm 29er (700C) CX Gravel Carbon Mountain / Road Bike Rim Tubeless Ready Hookless

Welcome to Carbonfan wheels store. Here is some tips for shopping.

Carbon wheel weight

Width:29mm Depth:45mm 29er (700C) CX Gravel Carbon Mountain / Road Bike Rim Tubeless Ready Hookless

SKU DC-CX-Gravel-29er-700C-29-45-22

Be the first to review this product Ask Question

Rim weight: 480.00 g

$179.00

Availability: Available

Rim or Wheels *

Rim
Wheels +$250.00

Hub Model *

DT Swiss 180 RATCHET EXP ( Centerlock Straightpull ) +$250.00
DT Swiss 350
DT Swiss 240 RATCHET EXP +$95.00
Hope Pro 4 +$65.00
DT Swiss 350 Boost +$25.00
DT Swiss 240S Boost +$125.00
DT Swiss 240 RATCHET EXP Boost +$130.00
Hope Pro 4 Boost +$80.00
Hope Pro 4 Single Speed Rear +$70.00

Hub upgrading *

None
Upgrade to DT 54T ratchet +$52.50
Upgrade to DT 36T ratchet +$37.50

A pair? *

Yes, A pair
Only front
Only rear

Spoke lacing *

Freehub body *

Rotor *

6-bolt
Centerlock

Spoke head *

J-bend
J-bend (Single Speed Wheel)
Straight pull +$8.00

Front holes *

Rear holes *

Spoke *

Pillar aero x-tba 1420
Sapim CX-ray +$60.00

Spoke of replacement *

None
Pillar aero x-tba 1420 +$4.00
Sapim CX-ray +$6.00

Nipple *

Aluminum black
Aluminum red
Brass black

Brake system *

Non-Disc (with basalt braking surface)
Disc, Cyclo-Cross (without braking surface)

Nipple drilling *

External Nipple 4.5mm
External Nipple 4.5mm & UST ( no nipple hole on rim bed ) +$10.00
Internal Nipple 2.3mm

Finish *

Glossy
Matte
Paintless +$20.00

Weave *

Valve stem *

None
With Valve Stem +$15.00

Tubeless Tape *

None
With Tubeless Tape +$5.00

Shipper *

* Required Fields

Qty:

If you wanna make your front wheel and rear wheel different, you can decrease this QTY to 1 and select another wheel add to shopping cart

-OR- -OR-

Email to a Friend

Warranty policy

1 year quality guarantee, More details

: Product Description
: Product Questions
: Ratings & Reviews
: Shipping

Product Description

1. Disc brake special rim, straight edge design, increase the contact between the rim and the ground
2. Maximum tire pressure: 120psi
3. The drilling Angle of front wheel is A Angle, and the A Angle is plus or minus 5 degrees. The drilling Angle of rear wheel is AB Angle, A is plus or minus 5 degrees,B is plus or minus 6 degrees

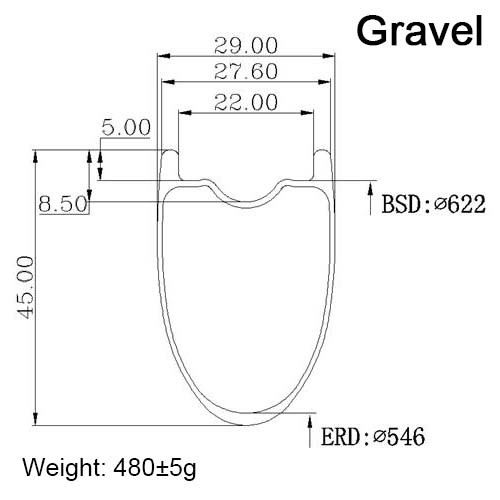

Size	Outer width	Inner width	Depth	ERD	Performance	Weight(g)+/-15
29er (700C)	29mm	22mm	45mm	546	Gravel	480

Rim Material:	full carbon Toray T700
Spoke Hole Drilling:	+/-5 deg
Max Weight Limit:	120kg
Max Spoke Tension:	180kgf
Maximum Tire Pressure:	120psi(recommended)
Rim Warranty:	1 year
Rim Lead Time:	10-15 working days
