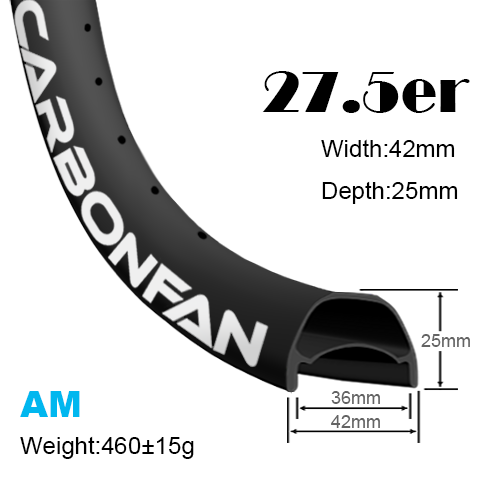

Width:42mm Depth:25mm 27.5er carbon mountain bike rims 650B classic All mountain

460.00 g

Availability: Available

* Required Fields

If you wanna make your front wheel and rear wheel different, you can decrease this QTY to 1 and select another wheel add to shopping cart

  • Product Description

    The design for wheels in HM series is classic symmetry, which is very different from XY series. It is still the most commonly used design in the market. If you observe its cross-section carefully, you will find that it is more close to the traditional design for the aluminum wheels.  If it is your first time to use carbon fibre wheels, HM will be your best choice.  Because they will give you similar felling when you are using aluminum wheels. HM series targets players who use carbon fibre wheels the first time.
    The design for HM mountain wheelset emphasizes universality.  Its design is very classic and highly commended in the early markets. In order to catch up with the latest trend, recently we start to use the newest asymmetrical designs.
    Hookless carbon rims designed for aggressive mountain bikers,light,stiff and strong

    enough.Bead lock design allows rim run tubeless system pecfectly and safely.Continuous
    carbon fiber over hookless sidewall provides great impact strength and resistance.

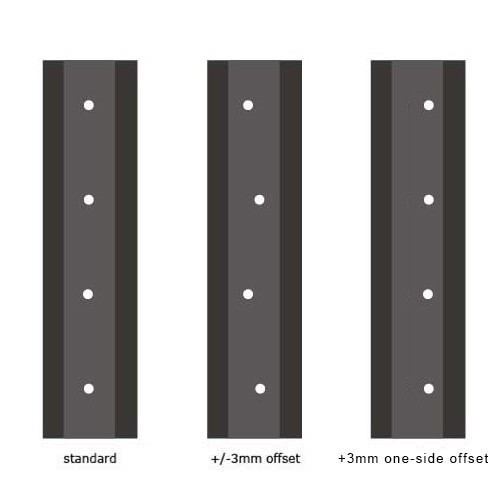

    It can be drilled into 32 +/-3mm offset.

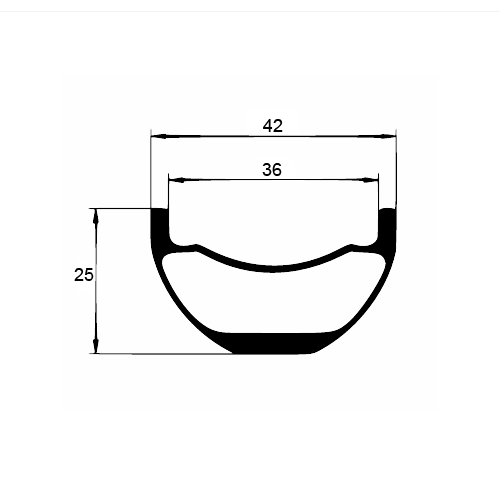

    Size Outer width Inner width Depth ERD Performance Weight(g)+/-15
    27.5er 42mm 36mm 25mm 557 AM 460
    Rim Material: full carbon Toray T700
    Spoke Hole Drilling: +/-6 deg
    Max Weight Limit: 135kg
    Max Spoke Tension: 150kgf
    Maximum Tire Pressure: 40psi(recommended)
    Rim Warranty: 1 year
    Rim Lead Time: 15-20 working days
