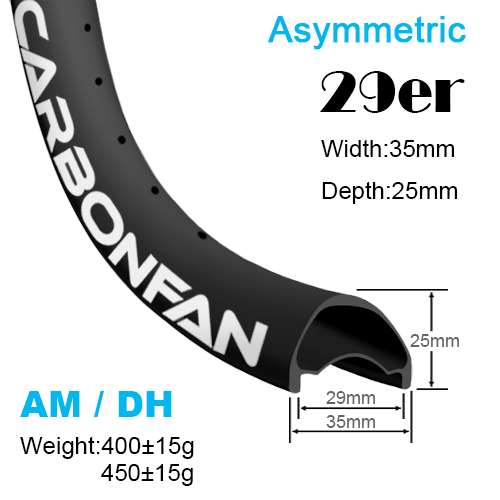

Width:35mm Depth:25mm 29er Asymmetric carbon MTB rims AM / DH

Welcome to Carbonfan wheels store. Here is some tips for shopping.

Width:35mm Depth:25mm 29er Asymmetric carbon MTB rims AM / DH

XY-rim-35mm-25mm-29er
450.00 g
$174.60

Availability: Available

* Required Fields

If you wanna make your front wheel and rear wheel different, you can decrease this QTY to 1 and select another wheel add to shopping cart

  • Product Description

    Asymmetric rims make wheels stiffer, stronger and more reliable,offset nipple holes improve the bracing angles and equalize the spoke tension between
    the drive and non-drive side.Continuous and bend carbon fiber over hookless sidewall provides best impact strength and resistance.

    Standard: Constructed with premium Toray T700 carbon fiber. The good strength to weight ratio with no expense spared.
    Skyweight: Hybrid construction of Toray T800 and T700 was used to reduce wall thickness in key areas while enhancing the overall rim stiffness. These
    rims are available with the UD material only due to the strict standards required to produce the Flyweight model. We used a lower FAW (fiber areal
    weight) and a thinner prepreg to achieve a more adjustable layup schedule design which reduces the stress between the layers of carbon fiber.

    Hookless:Carbon fiber flows continuously over the bead area to provide the best impact resistance and a significant strength increase compared to a
    clincher rim.

    Tubeless:While the rims are optimized for a tubeless setup with the addition of tubeless tape, they also work with tubes.

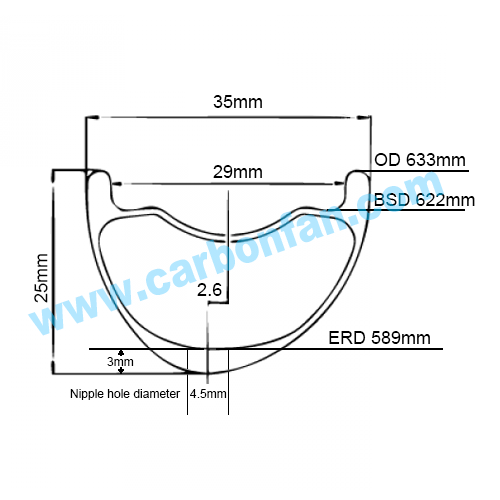

    Size Outer width Inner width Depth ERD Performance Weight(g)+/-15
    29er 35mm 29mm 25mm 589 AM 400
    29er 35mm 29mm 25mm 589 DH 450

    Rim Material: full carbon Toray T700
    Spoke Hole Drilling: +/-6 deg
    Asymmetric Offset: 2.6mm
    Max Weight Limit: 115kg
    Max Spoke Tension: 160kgf
    Tire width: 2.2-2.6
    Max pressure: 35psi(recommended)
    Rim Warranty: 1 year
    Rim Lead Time: 9-15 working days

    T800 Width:35mm Depth:25mm 29er Asymmetric carbon MTB rims XC
